Safety fence for fall protection, ECONFENCE® BASIC LINE fall protection system HEIGHT 2000MM

Safety fence for fall protection, ECONFENCE® BASIC LINE fall protection system HEIGHT 2000MM

€608.00 *
basic price per running meter: €304.00 *
Quantity Unit price
From 2 €304.00 * ( €361.76 VAT included )
From 20 €281.00 * ( €334.39 VAT included )

Prices plus VAT (free shipping)

Free shipping

Stock items. Ready for dispatch in 48 hours

  • SW10113
  • 1x row post (BRP2000-VZ-S10) + 1x crossbar (TSM-10250) + 1x grid (W)1983x(H)2006mm - incl. KICK PLATE + fixing material (= 2 linear metres)
  • The article is supplied without doors, end and corner posts. You will find supplementary articles under "Matching"
FIELD OF APPLICATION: The safety fence system ECONFENCE® BASIC LINE is a type-tested safety... more
Safety fence for fall protection, ECONFENCE® BASIC LINE fall protection system HEIGHT 2000MM

FIELD OF APPLICATION:

The safety fence system ECONFENCE® BASIC LINE is a type-tested safety fence with integrated railing. As the first certified fall protection system with DGUV test mark, the fall protection complies with the specifications of the building product regulation according to DIN EN 1090 and at the same time with DIN EN ISO 14122-3. The innovation for use in warehouse logistics as well as in mechanical and plant engineering thus solves two normative specified disciplines for the first time, depending on the user case. With a tested impact energy of 950 joules, the fall protection is not only stable but also very economical.

INTENDED USE:

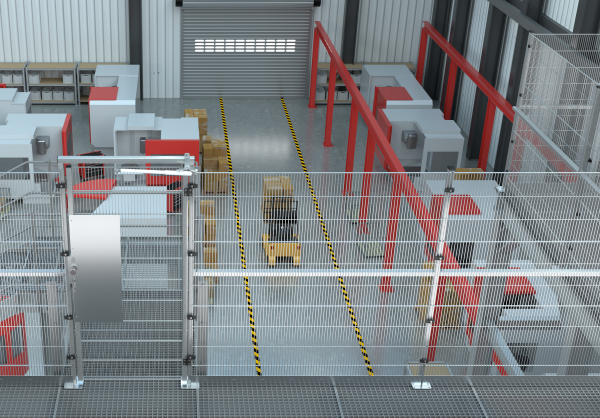

Normative use of the certified ECONFENCE® BASIC LINE FALL arrest system is intended for use as a fixed separating safety device to protect against reaching danger points and as protection against accidental falls of persons, e.g. on stages, platforms or catwalks of fixed accesses to mechanical systems.

GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:

  • Guaranteed high load capacity - tested impact energy 950 joules (verified by pendulum impact test according to DIN EN ISO 14120)
  • DGUV TEST - Type tested - Conform MRL 2006/42/EC + DIN EN ISO 14122-3
  • Low ground clearance of the safety fence of 8 mm
  • Element cuts on site possible due to frameless grid construction
  • Simple and quick installation of the fall protection
  • Operating instructions included
  • Delivery with EC Declaration of Conformity and CE marking when ordering a fall protection system
Product type: Modular system
System height: 2000mm
Type of material: Steel
Surface refinement: Galvanizing
TECHNICAL DATA: Product type: Modular system       Scope... mehr

TECHNICAL DATA:

Product type:Modular system
Scope of delivery:1x row post(BRP2000-VZ-S10) + 1x cross beam(TSM-10250) + 1x grid (W)1983x(H)2006mm - incl. KICK PLATE + fixing material (= 2 running meters)
System height:2000mm
Horizontal wire thickness:15 x 6 mm flat bar, 5.5 mm round wire
Vertical wire thickness:3.5 mm round wire
Mesh size:19 x 190 mm, spot-welded
Weight:Post - 7,0 KG / Grid - 22,3 KG
Material type:Steel
Surface finish:high quality galvanised
Manufacturer:TIEMANN Schutz-Systeme GmbH
Product brand:ECONFENCE®
Product line:BASIC LINE FALL PROTECTION
Certification:Yes
