PANEL FOR ECONFENCE® BASIC LINE FALL PROTECTION 2000X2000MM

€292.00 *
Quantity Unit price
To 9 €292.00 * ( €347.48 VAT included )
From 10 €282.00 * ( €335.58 VAT included )

Prices plus VAT (free shipping)

Stock items. Ready for dispatch in 48 hours

  • B20020019-VZ-S10
FIELD OF APPLICATION: The safety fence system ECONFENCE® BASIC LINE is a type-tested safety... more

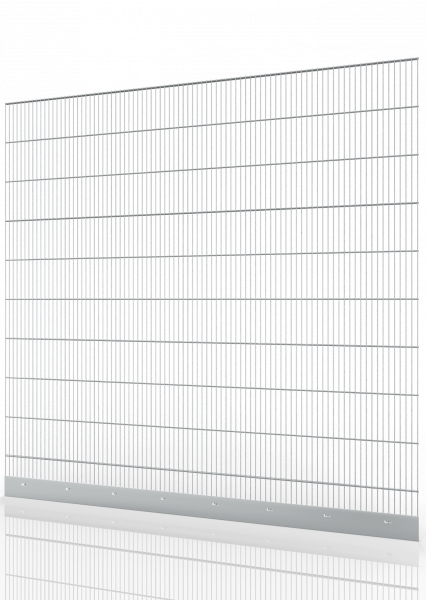

PANEL FOR ECONFENCE® BASIC LINE FALL PROTECTION 2000X2000MM

FIELD OF APPLICATION:

The safety fence system ECONFENCE® BASIC LINE is a type-tested safety fence with integrated railing. As the first certified fall protection system with DGUV test mark, the fall protection complies with the specifications of the building product regulation according to DIN EN 1090 and at the same time with DIN EN ISO 14122-3. The innovation for use in warehouse logistics as well as in mechanical and plant engineering thus solves two normative specified disciplines for the first time, depending on the user case. With a tested impact energy of 950 joules, the fall protection is not only stable but also very economical.

INTENDED USE:

Normative use of the certified ECONFENCE® BASIC LINE FALL arrest system is intended for use as a fixed separating safety device to protect against reaching danger points and as protection against accidental falls of persons, e.g. on stages, platforms or catwalks of fixed accesses to mechanical systems.

GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:

  • Guaranteed high load capacity - tested impact energy 950 joules (verified by pendulum impact test according to DIN EN ISO 14120)
  • DGUV TEST - Type tested - Conform MRL 2006/42/EC + DIN EN ISO 14122-3
  • Low ground clearance of the safety fence of 8 mm
  • Element cuts on site possible due to frameless grid construction
  • Simple and quick installation of the fall protection
  • Operating instructions included
  • Delivery with EC Declaration of Conformity and CE marking when ordering a fall protection system
System height: 2000mm
Product type: Grid
Type of material: Steel
Surface refinement: Galvanizing
TECHNICAL DATA: Product type: Safety... mehr

TECHNICAL DATA:

Product type: Safety guard
Scope of delivery                     Including kick plate, article no.: TSB-10087 (edged, galvanized sheet steel for on-site installation on the protective grid, dimensions: 1983 x 105 mm, material quality: DX51D+Z)
Element width: 1983 mm
Element height: 2006 mm
Horizontal wire thickness: 15 x 6 mm flat bar, 5.5 mm round wire
Vertical wire thickness: 3.5 mm round wire
Mesh size: 19 x 190 mm, spot-welded
Weight: 25,5 Kg (including kick plate)
Material type: Steel
Surface finish: hot-dip galvanized according to DIN EN ISO1461
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE FALL PROTECTION
Certification: Yes
CAD data: Yes
