GRID PARTITION WALL FOR WAREHOUSE & LOGISTICS, ECONFENCE fence package® BASIC LINE ZINC HEIGHT 4000MM

GRID PARTITION WALL FOR WAREHOUSE & LOGISTICS, ECONFENCE fence package® BASIC LINE ZINC HEIGHT 4000MM

Tiemann Schutz-Systeme GmbH
€786.00 *
basic price per running meter: €393.00 *
Quantity Unit price
From 2 		€393.00 * ( €467.67 VAT included )
From 11 		€386.00 * ( €459.34 VAT included )
From 21 		€379.00 * ( €451.01 VAT included )

Prices plus VAT (free shipping)

Stock items. Ready for dispatch in 48 hours

  • Article-no.: SW10233
  • Delivery unit: 1x row post BRP4000-VZ-S01 + 2x grating B20020019-VZ incl. fastening material (= 2 running meters)
  • NOTE: The article is supplied without doors, end and corner posts. You can find additional items under "Matching items"
Matching
Matching
Close menu
Description TECHNICAL DATA Complementary products
Description
AREA OF APPLICATION: The proven ECONFENCE®  BASIC LINE ZINK mesh partition wall system... more
Close menu
GRID PARTITION WALL FOR WAREHOUSE & LOGISTICS, ECONFENCE fence package® BASIC LINE ZINC HEIGHT 4000MM

AREA OF APPLICATION:

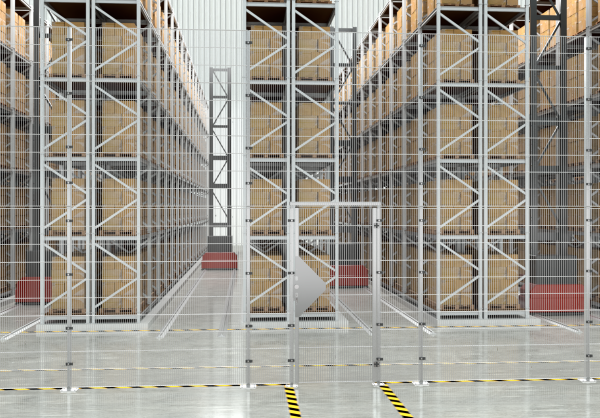

The proven ECONFENCE®  BASIC LINE ZINK mesh partition wall system for warehousing and logistics is our bestseller and customer favorite for use in warehouse logistics, production and conveyor technology. With a tested impact energy of 950 joules, it is not only stable, but also very economical to purchase.  The innovative frameless element design, which is used in all our product lines, guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches can be made in no time at all. Its galvanized and visually appealing surface finish ensures increased corrosion protection.

INTENDED USE:

The ECONFENCE®  BASIC LINE ZINC mesh partition wall system for warehousing & logistics is intended for use as a fixed separating distance guard to protect people from reaching danger points on machines and systems.

GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:

  • Guaranteed high load capacity - tested impact energy 950 joules (verified by pendulum impact test in accordance with DIN EN ISO 14120)
  • Low ground clearance of the safety fence system of 38 mm
  • Elements can be cut to size on site thanks to frameless mesh construction
  • Quick and easy installation of the safety guard
  • Operating instructions included
  • Delivery with EC declaration of conformity and CE marking when ordering a protective fence system
Product type: Modular system
Type of material: Steel
Surface refinement: Galvanizing
System height: 4000mm
TECHNICAL DATA
TECHNICAL DATA: Product type: Modular system      ... mehr
Close menu

TECHNICAL DATA:

Product type: Modular system
Scope of delivery: 1x row post + 2x mesh (W)1983x(H)2006mm - incl. fastening material (= 2 running meters)
System height: 4000mm
Horizontal wire thicknesses: 15 x 6mm flat bar, 5.5mm round wire
Vertical wire thickness: 3.5mm round wire
Mesh size: 19 x 190 mm, spot-welded
Weight: Post -16.5 KG / Mesh - 45.5 KG
Material type: Steel
Surface finish: hot-dip galvanized according to DIN EN ISO1461
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE ZINC
Certification: Yes
