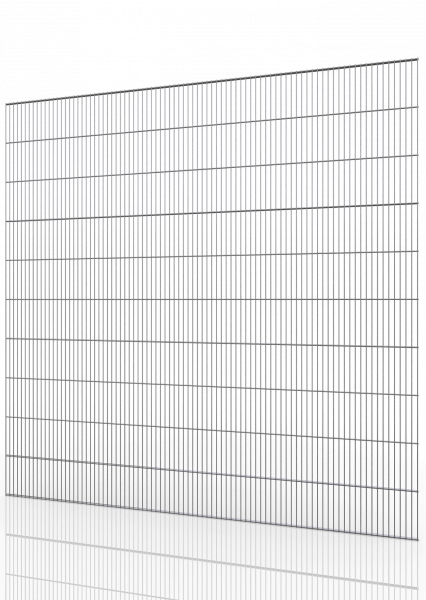

PANEL FOR WAREHOUSE PARTIONING ECONFENCE® BASIC LINE ZINC 2000x2000mm

€239.00 *
Quantity Unit price
To 9 €239.00 * ( €284.41 VAT included )
From 10 €229.00 * ( €272.51 VAT included )

Prices plus VAT (free shipping)

Delivery time - 20-25 working days

  • B20020019-VZ
Range of application: The safety guard system for  warehouse partioning... more
PANEL FOR WAREHOUSE PARTIONING ECONFENCE® BASIC LINE ZINC 2000x2000mm

Range of application:

The safety guard system for warehouse partioning ECONFENCE® BASIC LINE ZINK is our bestseller and customer favourite in warehouse logistics, production and materials handling technology. With a tested impact energy of 950 joules, it is not only stable but also very economical to buy. The innovative frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all. Its galvanised and visually appealing surface finish ensures increased corrosion protection.

Intended use:

The safety guard system for warehouse partioning ECONFENCE® BASIC LINE ZINC is intended to use as a fixed separating distance protection device to protect persons against reaching danger points on machines and systems.

GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:

  • Guaranteed high load capacity - tested impact energy 950 joules (verified by pendulum impact test according to DIN EN ISO 14120)
  • Low ground clearance of the safety fence of 38 mm
  • Element cuts on site possible due to frameless grid construction
  • Simple and fast mounting of the protective device
  • Operating instructions included
  • Delivery with EC Declaration of Conformity and CE marking when ordering a protective fence system
Product type: Grid
Type of material: Steel
Surface refinement: Galvanizing
System height: 2000mm, 3000mm, 4000mm
Technical data: Product type: Safety... mehr

Technical data:

Product type: Safety guard
Element width: 1983 mm
Element height: 2006 mm
Horizontal wire thickness: 15 x 6 mm flat bar, 5.5 mm round wire
Vertical wire thickness: 3.5 mm round wire
Mesh size: 19 x 190 mm, spot-welded
Weight: 22,6 Kg
Material type: Steel
Surface finish: hot-dip galvanized according to DIN EN ISO1461
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE ZINC
CAD data: Yes
