SINGLE SLIDING DOOR FOR WAREHOUSE PARTIONING TS01 ECONFENCE® BASIC LINE ZINC 800X2000mm

€1,324.00 *
Quantity Unit price
To 4 €1,324.00 * ( €1,575.56 VAT included )
From 5 €1,258.00 * ( €1,497.02 VAT included )

Prices plus VAT (free shipping)

Delivery time - 20-25 working days

  • BSTLR20008019-VZ-TS01
Range of application: The safety guard system for  warehouse partioning... more

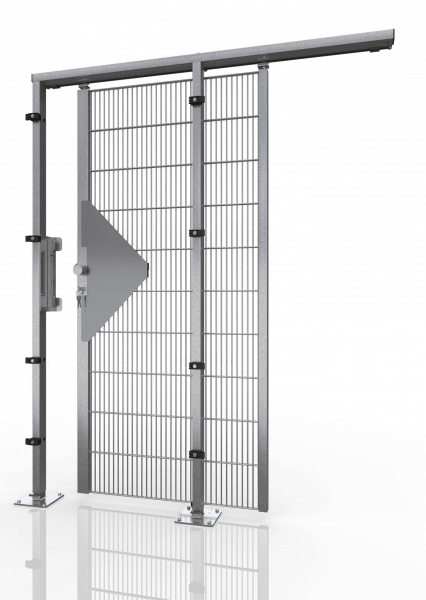

SINGLE SLIDING DOOR FOR WAREHOUSE PARTIONING TS01 ECONFENCE® BASIC LINE ZINC 800X2000mm

Range of application:

The safety guard system for warehouse partioning ECONFENCE® BASIC LINE ZINK is our bestseller and customer favourite in warehouse logistics, production and materials handling technology. With a tested impact energy of 950 joules, it is not only stable but also very economical to buy. The innovative frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all. Its galvanised and visually appealing surface finish ensures increased corrosion protection.

Intended use:

The single sliding door for warehouse partioning TS01 is a component of the "ECONFENCE® BASIC LINE ZINC" partition wall system and can be used as a separating distance protection device without locking device as a maintenance door.

GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:

  • Guaranteed high load capacity
  • Low ground clearance of the safety fence of 38 mm
  • Simple and fast mounting of the protective device
  • Operating instructions included
  • Delivery with EC Declaration of Conformity and CE marking when ordering a protective fence system
System height: 2000mm
Product type: Door
Type of material: Steel
Surface refinement: Galvanizing
TECHNICAL DATA: Product type: 1-leaf sliding door Application: Opening... mehr

TECHNICAL DATA:

Product type: 1-leaf sliding door
Application: Opening direction Universal (DIN left / DIN right) - Internal running
Scope of delivery: 2 x door posts, door crossbar, door wings, mounting accessories incl. accessory set for grid mounting
Mounting height: 2138 mm
Door leaf height: 2008 mm
Axial dimension: 830 mm
Clearance width: 555 mm
Door panel: Grid element with laterally welded profile frame QR40
Door panel: Grid mesh width 19 x 190 mm, spot-welded
Lockdown: Outside knob with reach-through protection, inside aluminium latch, not lockable when closed, with pre-locking function to prevent automatic closing when staying in the maintenance area. Opening from inside without key (escape release)
Guidance: 2 x height adjustable roller units for sliding door suspension on upper steel rail, lower roller guide
Ground clearance: 38 mm
Door post dimensions: 60 x 40 x 2 x 2000 mm
Footplate dimensions: 180 x 180 x 8 mm, electrogalvanized with a blue passivation according to DIN EN ISO 19598
Weight: 62 Kg
Material type: Steel
Surface finish: hot-dip galvanized according to DIN EN ISO1461
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE ZINC
CAD data: Yes
