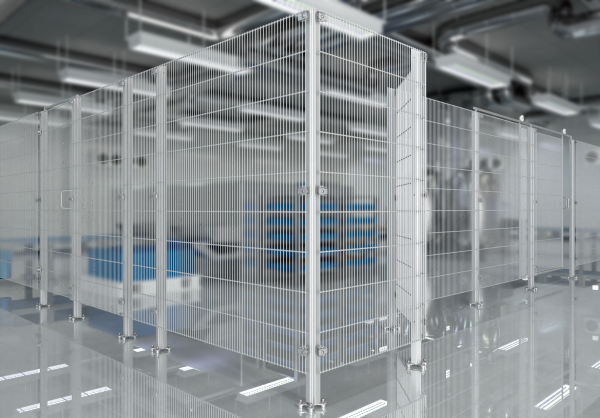

Stainless steel system for machine guarding, modular system HYGIENEFENCE® HIGH 2000M

Stainless steel system for machine guarding, modular system HYGIENEFENCE® HIGH 2000M

€1,533.00 *
basic price per running meter: €511.00 *
Quantity Unit price
From 3 €511.00 * ( €608.09 VAT included )
From 15 €486.00 * ( €578.34 VAT included )

Prices plus VAT (free shipping)

Free shipping

Stock items. Ready for dispatch in 48 hours

  • SW10189
  • 2x row posts YURP2000 + 2x grids Y18015019 incl. fixing material (= 3.0 linear metres)
  • The article is supplied without doors, end and corner posts. You will find supplementary articles under "Matching"
FIELD OF APPLICATION: HYGIENEFENCE® - the hygienically certified stainless steel system for... more
Stainless steel system for machine guarding, modular system HYGIENEFENCE® HIGH 2000M

FIELD OF APPLICATION:

HYGIENEFENCE® - the hygienically certified stainless steel system for machine guarding, especially for food processing machinery is the hygienically clean and safe solution when using distance protection devices. Recommended for the safety of employees and service personnel in the food and beverage industry and pharmaceutical industry.

INTENDED USE

Fixed separating distance protection device (as defined by DIN EN 953) for the protection of persons against reaching danger points on machines and plants in the food industry (e.g. bakeries, pharmaceuticals, meat product plants, cheese factories, dairies).

GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:

  • Hygiene-certified for food processing machinery according to DIN EN 1672-2:2009-07 + (EC) No. 1935/2004
  • DGUV TEST - Type tested - Conform MRL 2006/42/EG
  • Simple and quick installation - operating instructions included
  • Element cuts on site possible due to frameless grid construction
  • Delivery with EC Declaration of Conformity, CE marking when ordering a protective fence system
  • ECOLAB material testing for compatibility of cleaning agents
Type of material: Stainless steel
Product type: Modular system
Surface refinement: Pickling
System height: 2000mm
TECHNICAL DATA: Product type: Modular system Scope of delivery 2x row posts +... mehr

TECHNICAL DATA:

Product type: Modular system
Scope of delivery 2x row posts + 2x (W)1483x(H)1808mm mesh - incl. mounting material (=3 running meters)
System height:

2000mm

Horizontal wire thickness     8 mm, round wire
Vertical wire thickness: 4 mm, round wire
Mesh size: 19 x 190 mm, spot-welded
Weight: Posts - 6,7 Kg / lattice - 17,7 Kg
Material type: Stainless steel
Material quality: 1.4301
Surface finish: Pickling
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: HYGIENEFENCE®
Certifications: Yes
