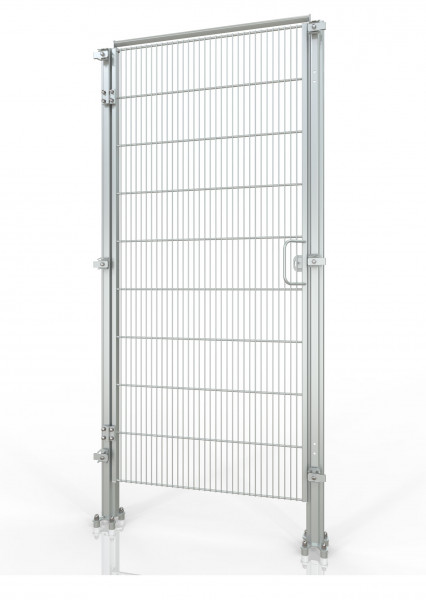

Stainless steel single hinge door for machine guarding HYGIENEFENCE®1000X2000mm
€2,217.00 *
Quantity | Unit price |
---|---|
To 4 | €2,217.00 * ( €2,638.23 VAT included ) |
From 5 | €2,092.00 * ( €2,489.48 VAT included ) |
Prices plus VAT (free shipping)
Stock items. Ready for dispatch in 48 hours
- Article-no.: YUTLR18010019
- NOTE: the illustrated floor spacer sleeves are not part of the scope of delivery (see accessory article TSB-10426)
Range of application: HYGIENEFENCE® - the hygienically certified stainless steel system for... more
Stainless steel single hinge door for machine guarding HYGIENEFENCE®1000X2000mm
Range of application:
HYGIENEFENCE® - the hygienically certified stainless steel system for machine guarding, especially for food processing machinery is the hygienically clean and safe solution when using distance protection devices. Recommended for the safety of employees and service personnel in the food and beverage industry and pharmaceutical industry.
Intended use:
Fixed separating distance protection device (as defined by DIN EN 953) to protect people from reaching danger points on machines and systems in the food industry (e.g. bakeries, pharmaceuticals, meat product plants, cheese factories, dairies).
Guaranteed safety ex works / product and user benefits:
- Hygiene-certified for food processing machinery according to DIN EN 1672-2:2009-07 + (EC) No. 1935/2004
- DGUV TEST - Type tested - Conform MRL 2006/42/EG
- Simple and quick installation - operating instructions included
- Delivery with EC Declaration of Conformity, CE marking when ordering a protective fence system
- ECOLAB material testing for compatibility of cleaning agents
Surface refinement: | Pickling |
System height: | 2000mm |
Product type: | Door |
Type of material: | Stainless steel |
Application area: | Food industry |
Technical data: Product type: 1-leaf revolving door Application: Universal... mehr
Technical data:
Product type: | 1-leaf revolving door |
Application: | Universal (opening direction optional: DIN left / DIN right) |
Scope of delivery: | 2 x door posts with welded-on base plate, door crossbar, door wings, mounting accessories incl. accessory set for grid mounting |
Mounting height: | 2029 mm |
Door leaf height: | 1826 mm |
Axial dimension: | 1065 mm |
Clearance width: | 910 mm |
Door panel: | grid element with laterally welded QR20 profile frame |
Door panel: | Grid mesh width 19 x 190 mm, spot-welded |
Lockdown: | Stainless steel door handle with magnetic lock |
Ground clearance: | 165 mm |
Door post dimensions: | 60 x 65 x 3 x 1998 mm |
Footplate dimensions: | 120 x 100 x 6 mm |
Weight: | 34,5 Kg |
Material type: | Stainless steel |
Material quality: | 1.4301 |
Surface finish: | Pickling |
Manufacturer: | TIEMANN Schutz-Systeme GmbH |
Product brand: | HYGIENEFENCE® |
Certifications: | Yes |
CAD data: | Yes |
