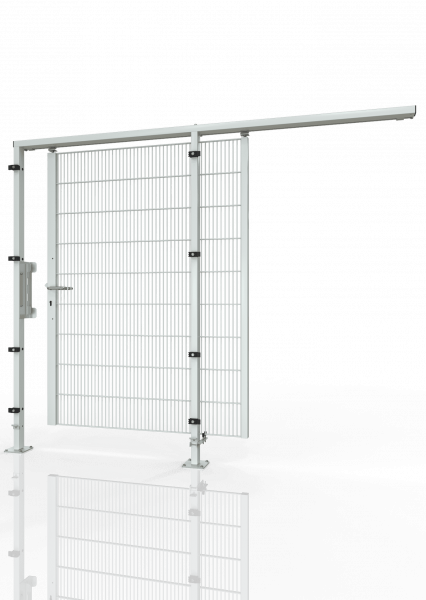

SINGLE SLIDING DOOR FOR MACHINE GUARDING BT01 ECONFENCE® BASIC LINE 1200x2200 RAL7035
| Quantity | Unit price |
|---|---|
| | €1,054.00 * ( €1,254.26 VAT included ) |
| | €1,010.00 * ( €1,201.90 VAT included ) |
Prices plus VAT (free shipping)
Delivery time - 20-25 working days
- Article-no.: BSTLR20012019-BT01-2-7035
-
Range of application:
The safety guard system for machine guarding ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable, but also cost-effective to purchase. The appealing powder coating brings the corporate design of your company into the production if desired. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.
Intended use:
As a component of the "ECONFENCE® BASIC LINE" protective grating system in conjunction with a suitable interlocking device (as defined by DIN EN ISO 14119), the single sliding door for machine guarding BT01 is intended to use as a movable guard to protect persons against reaching danger points on machines and systems. The interlocking device itself and its fastening accessories are not part of the product or the certificate.
Product and user advantages:
- Guaranteed high load capacity
- DGUV TEST - Type approved - Conform MRL 2006/42/EG
- Simple and fast mounting of the protective device
- Delivery with EC declaration of conformity and CE marking ex works
| Product type: | Door |
| Surface refinement: | Powder coating |
| Type of material: | Steel |
| RAL colour: | 7035 - Light grey |
| System height: | 2200mm |
Technical data:
| Product type: | 1-leaf sliding door |
| Application: | Opening direction Universal (DIN left / DIN right) |
| Scope of delivery: | 2 x door posts, door crossbeam, door wings, mounting accessories incl. accessory set for grid mounting |
| Mounting height: | 2267 mm |
| Door leaf height: | 2008 mm |
| Axial dimension: | 1230 mm |
| Clearance width: | 953 mm |
| Door panel: | Grid element with laterally welded profile frame QR40 |
| Door panel: | Grid mesh width 19 x 190 mm, spot-welded |
| Lockdown: | Outside and inside aluminium latch, hook bolt, not lockable when closed |
| Guidance: | 2 x height adjustable roller units for sliding door suspension on upper steel rail, lower roller guide |
| Ground clearance: | 170 mm |
| Door post dimensions: | 60 x 40 x 2 x 2200 mm |
| Footplate dimensions: | 140 x 140 x 8 mm, electrogalvanized with a blue passivation according to DIN EN ISO 19598 |
| Weight: | 73 Kg |
| Material type: | Steel |
| Surface finish: | high quality powder-coated |
| RAL colour: | RAL 7035 light grey |
| Manufacturer: | TIEMANN Schutz-Systeme GmbH |
| Product brand: | ECONFENCE® |
| Product line: | BASIC LINE |
| Certifications: | Yes |
| CAD data: | Yes |
