Single hinge door for machine guarding ECONFENCE® BASIC LINE BT01 1000x2200 RAL7035

€668.00 *
Quantity Unit price
To 4 €668.00 * ( €794.92 VAT included )
From 5 €640.00 * ( €761.60 VAT included )

Prices plus VAT (free shipping)

Delivery time - 20-25 working days

  • BTLR20010019-BT01-2-7035
Range of application: The safety guard system for machine guarding  ECONFENCE® BASIC... more

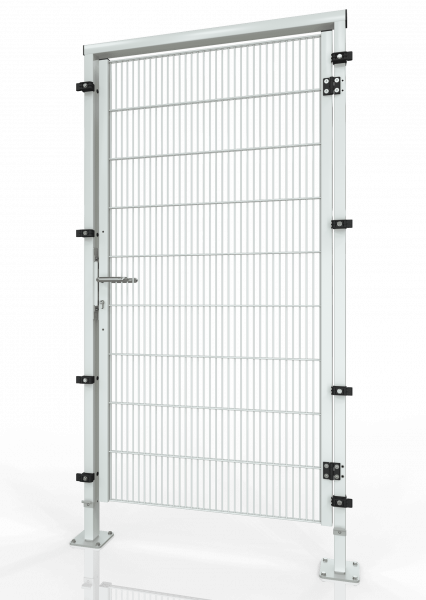

Single hinge door for machine guarding ECONFENCE® BASIC LINE BT01 1000x2200 RAL7035

Range of application:

The safety guard system for machine guarding ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable but also cost-effective. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.

Intended use:

As a component of the "ECONFENCE® BASIC LINE" protective grating system in conjunction with a suitable interlocking device (as defined by DIN EN ISO 14119), the single hinge door for machine guarding BT01 is intended to use as a movable guard to protect persons against reaching danger points on machines and systems. The interlocking device itself and its fastening accessories are not part of the product or the certificate.

Guaranteed safety ex works / product and user benefits:

  • Guaranteed high load capacity
  • DGUV TEST - Type tested - Conform MRL 2006/42/EG
  • Simple and fast mounting of the protective device
  • Delivery with EC declaration of conformity and CE marking ex works
Product type: Door
Surface refinement: Powder coating
Type of material: Steel
RAL colour: 7035 - Light grey
System height: 2200mm
Technical data: Product type: 1-leaf revolving door Application: Universal... mehr

Technical data:

Product type: 1-leaf revolving door
Application: Universal (opening direction optional: DIN left / DIN right)
Scope of delivery: 2 x door posts, door crossbeam, door wings, mounting accessories incl. accessory set for grid mounting
Mounting height: 2253 mm
Door leaf height: 2008 mm
Axial dimension: 1008 mm
Clearance width: 860 mm
Door panel: Grid element with laterally welded profile frame QR40
Door panel: Grid mesh width 19 x 190 mm, spot-welded
Lockdown: Outside and inside aluminium latch, not lockable when closed, with pre-locking function to prevent automatic closing when staying in the danger zone
Ground clearance: 174 mm
Door post dimensions: 60 x 40 x 2 x 2200 mm
Footplate dimensions: 140 x 140 x 8 mm, 30 mm height adjustable, electrogalvanized with a blue passivation according to DIN EN ISO 19598
Weight: 52 Kg
Material type: Steel
Surface finish: high quality powder-coated
RAL colour: RAL 7035 light grey
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE
Certifications: Yes
CAD data: Yes
