Panel for machine guarding ECONFENCE® BASIC LINE 1500x1800mm RAL-9005

€136.00 *
Quantity Unit price
To 9
€136.00 * ( €161.84 VAT included )
From 10
€130.00 * ( €154.70 VAT included )

Prices plus VAT (free shipping)

Stock items. Ready for dispatch in 48 hours

  • B18015019-4-9005
Range of application: The safety guard system for machine guarding  ECONFENCE® BASIC... more

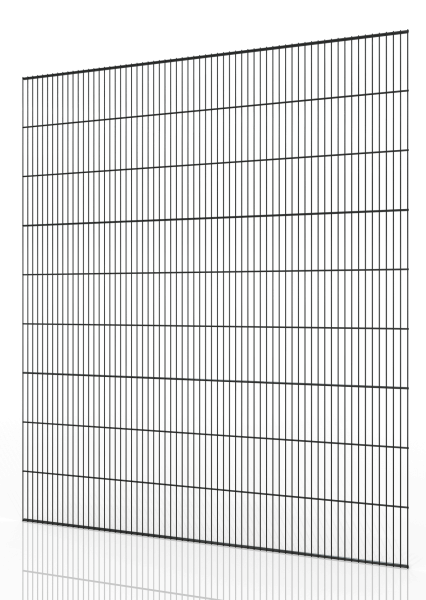

Panel for machine guarding ECONFENCE® BASIC LINE 1500x1800mm RAL-9005

Range of application:

The safety guard system for machine guarding ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable but also cost-effective. The attractive powder coating brings the corporate design of your company into the production if desired. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.

Intended use:

The safety guard system for machine guarding ECONFENCE® BASIC LINE is intended for use as a separating distance protection device to protect people from reaching danger points on machines and systems.

Guaranteed safety ex works / product and user benefits:

  • Guaranteed high load capacity - tested impact energy 950 joules (verified by pendulum impact test in accordance with DIN EN ISO 14120)
  • DGUV TEST - Type tested - Conform MRL 2006/42/EG
  • Element cuts on site possible due to frameless grid construction
  • Simple and fast mounting of the protective device
  • Operating instructions included
  • Delivery with EC Declaration of Conformity and CE marking when ordering a protective fence system
System height: 2000mm
Product type: Grid
Surface refinement: Powder coating
RAL colour: 9005 - matt black
Type of material: Steel
Technical data: Product type: Safety... mehr

Technical data:

Product type: Safety guard
Element width: 1484 mm
Element height: 1806 mm
Horizontal wire thickness: 15 x 6 mm flat bar, 5.5 mm round wire
Vertical wire thickness: 3.5 mm round wire
Mesh size: 19 x 190 mm, spot-welded
Weight: 15 Kg
Material type: Steel
Surface finish: high quality powder-coated
RAL colour: 9005 matt black
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE
Certification: Yes
CAD data: Yes
