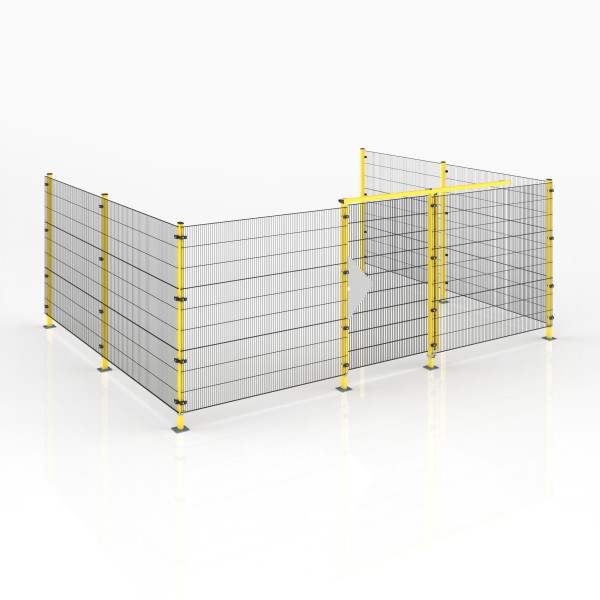

MACHINE GUARDING, MODULAR SYSTEM ECONFENCE® BASIC LINE 4000x5000 sliding door

MACHINE GUARDING, MODULAR SYSTEM ECONFENCE® BASIC LINE 4000x5000 sliding door

€2,724.00 *

Prices plus VAT (free shipping)

Delivery time - 20-25 working days

  • SW10362
  • 6x grille B18020019-4-9005, 1x sliding door BSTLR18012019-TS01-4-1021-4-9005,2x corner posts BEPLR2000-4-1021, 4x row posts BRP2000-4-1021 incl. grille fixing material
  • The article is supplied without doors, end and corner posts. You will find supplementary articles under "Matching"
FIELD OF APPLICATION: The safety guard system for machine guarding  ECONFENCE® BASIC... more
MACHINE GUARDING, MODULAR SYSTEM ECONFENCE® BASIC LINE 4000x5000 sliding door

FIELD OF APPLICATION:

The safety guard system for machine guarding ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable but also cost-effective. The attractive powder coating brings the corporate design of your company into the production if desired. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.

INTENDED USE:

The safety guard system for machine guarding ECONFENCE® BASIC LINE is intended for use as a separating distance protection device to protect people from reaching danger points on machines and systems.

GUARANTEED SAFETY EX WORKS / PRODUCT AND USER BENEFITS:

  • Guaranteed high load capacity - tested impact energy 950 joules (verified by pendulum impact test according to DIN EN ISO 14120)
  • DGUV TEST - Type tested - Conform MRL 2006/42/EG
  • Element cuts on site possible due to frameless grid construction
  • Simple and fast mounting of the protective device
  • Operating instructions included
  • Delivery with EC Declaration of Conformity and CE marking when ordering a protective fence system
Product type: Modular system
System height: 2000mm
Surface refinement: Powder coating
RAL colour: 1021 - rape yellow, 9005 - matt black
Type of material: Steel
TECHNICAL DATA: Product type: Modular system      ... mehr

TECHNICAL DATA:

Product type: Modular system
Scope of delivery:

6x grille B18020019-4-9005, 1x sliding door BSTLR18010019-TS01-4-1021-4-9005,
2x corner post BEPLR2000-4-1021, 4x row post BRP2000-4-1021 incl. mesh fixing material

System height: 2000mm
Horizontal wire thickness: 15 x 6 mm flat bar, 5.5 mm round wire
Vertical wire thickness: 3.5 mm round wire
Mesh size: 19 x 190 mm, spot-welded
Weight: Item: 254.6 kg - Pallet: approx. 20 kg - Total weight: approx. 274.6 kg
Material type: Steel
Surface finish: high quality powder-coated
RAL colour: Post - 1021 rape yellow  / grid - 9005 matt black
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE
Certification: Yes
