SINGLE HINGE DOOR FOR MACHINE GUARDING ECONFENCE® BASIC LINE GH01 1000x2000 RAL7035

€525.00 *
Quantity Unit price
To 4 €525.00 * ( €624.75 VAT included )
From 5 €503.00 * ( €598.57 VAT included )

Prices plus VAT (free shipping)

Delivery time - 20-25 working days

  • BTLR18010019-GH01-2-7035
Range of application: The safety guard system for machine guarding    ECONFENCE®... more

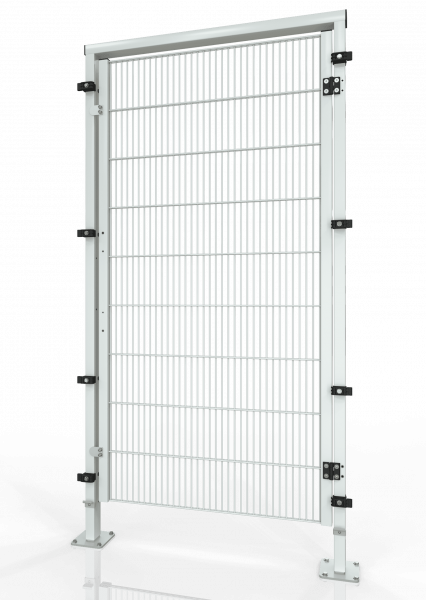

SINGLE HINGE DOOR FOR MACHINE GUARDING ECONFENCE® BASIC LINE GH01 1000x2000 RAL7035

Range of application:

The safety guard system for machine guarding  ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable but also cost-effective. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.

Intended use:

The single hinge door for machine guarding GH01 is part of the "ECONFENCE® BASIC LINE" safety grid system and can be used as a movable guard in conjunction with a suitable interlocking device.

Guaranteed safety ex works / product and user benefits:

  • Guaranteed high load capacity
  • Simple and fast mounting of the protective device
  • Delivery with EC declaration of conformity and CE marking ex works
System height: 2000mm
Product type: Door
Surface refinement: Powder coating
Type of material: Steel
RAL colour: 7035 - Light grey
Technical data: Product type: 1-leaf revolving door Application: Universal... mehr

Technical data:

Product type: 1-leaf revolving door
Application: Universal (opening direction optional: DIN left / DIN right)
Scope of delivery: 2 x door posts, door crossbeam, door wings, mounting accessories incl. accessory set for grid mounting
Mounting height: 2053 mm
Door leaf height: 1808 mm
Axial dimension: 1002 mm
Clearance width: 854 mm
Door panel: Grid element with laterally welded profile frame QR40
Door panel: Grid mesh width 19 x 190 mm, spot-welded
Lockdown: Door leaf with smooth stop bar for mounting a freely plannable locking device (suitable mounting plates and locking devices on request)
Ground clearance: 174 mm
Door post dimensions: 60 x 40 x 2 x 2000 mm
Footplate dimensions: 140 x 140 x 8 mm, 30 mm height adjustable, electrogalvanized with a blue passivation according to DIN EN ISO 19598
Weight: 46 Kg
Material type: Steel
Surface finish: high quality powder-coated
RAL colour: RAL 7035 light grey
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE
CAD data: Yes
