SINGLE SLIDING DOOR FOR MACHINE GUARDING GH01 ECONFENCE® BASIC LINE 1200x2200 RAL7035

€864.00 *
Quantity Unit price
To 4
€864.00 * ( €1,028.16 VAT included )
From 5
€828.00 * ( €985.32 VAT included )

Prices plus VAT (free shipping)

Delivery time - 20-25 working days

  • BSTLR20012019-GH01-2-7035
Range of application: The safety guard system for machine guarding  ECONFENCE® BASIC... more

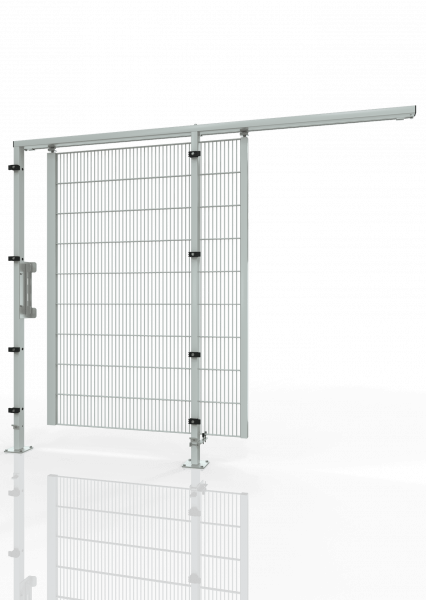

SINGLE SLIDING DOOR FOR MACHINE GUARDING GH01 ECONFENCE® BASIC LINE 1200x2200 RAL7035

Range of application:

The safety guard system for machine guarding ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable, but also cost-effective to purchase. The appealing powder coating brings the corporate design of your company into the production if desired. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.

Intended use:

The single sliding door for machine guarding GH01 is part of the "ECONFENCE® BASIC LINE" safety grid system and can be used as a movable guard in conjunction with a suitable interlocking device.

Product and user advantages:

  • Guaranteed high load capacity
  • Simple and fast mounting of the protective device
  • Delivery with EC declaration of conformity and CE marking ex works
Product type: Door
Surface refinement: Powder coating
Type of material: Steel
RAL colour: 7035 - Light grey
System height: 2200mm
Technical data: Product type: 1-leaf sliding door Application: Opening... mehr

Technical data:

Product type: 1-leaf sliding door
Application: Opening direction Universal (DIN left / DIN right)
Scope of delivery: 2 x door posts, door crossbeam, door wings, mounting accessories incl. accessory set for grid mounting
Mounting height: 2267 mm
Door leaf height: 2008 mm
Axial dimension: 1230 mm
Clearance width: 953 mm
Door panel: Grid element with laterally welded profile frame QR40
Door panel: Grid mesh width 19 x 190 mm, spot-welded
Lockdown: Door leaf with smooth stop bar for mounting a freely plannable locking device (suitable mounting plates and locking devices on request)
Guidance: 2 x height adjustable roller units for sliding door suspension on upper steel rail, lower roller guide
Ground clearance: 170 mm
Door post dimensions: 60 x 40 x 2 x 2200 mm
Footplate dimensions: 140 x 140 x 8 mm, electrogalvanized with a blue passivation according to DIN EN ISO 19598
Weight: 71 Kg
Material type: Steel
Surface finish: high quality powder-coated
RAL colour: RAL 7035 light grey
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE
CAD data: Yes
