Single hinge door for machine guarding ECONFENCE® BASIC LINE TS01 1000x2200 RAL7035

€705.00 *
Quantity Unit price
To 4 €705.00 * ( €838.95 VAT included )
From 5 €675.00 * ( €803.25 VAT included )

Prices plus VAT (free shipping)

Delivery time - 20-25 working days

  • BTLR20010019-TS01-2-7035
Range of application: The safety guard system for machine guarding ECONFENCE® BASIC LINE has... more

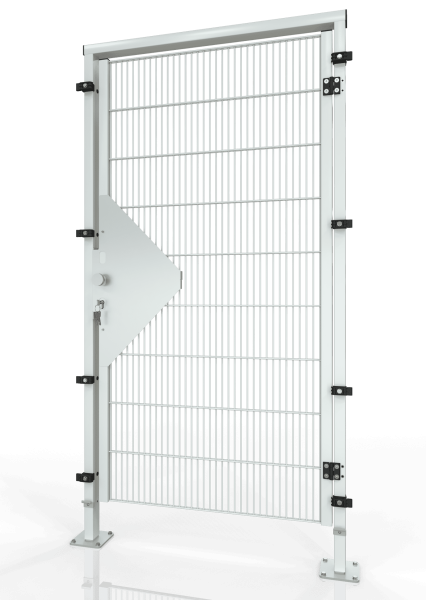

Single hinge door for machine guarding ECONFENCE® BASIC LINE TS01 1000x2200 RAL7035

Range of application:

The safety guard system for machine guarding ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable but also cost-effective. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.

Intended use:

The single hinge door for machine guarding TS01 can be used as a component of the "ECONFENCE® BASIC LINE" system and as a separating safety guard without locking device, as a maintenance door.

Guaranteed safety ex works / product and user benefits:

  • Guaranteed high load capacity
  • Simple and fast mounting of the protective device
  • Delivery with EC declaration of conformity and CE marking ex works



Product type: Door
Surface refinement: Powder coating
Type of material: Steel
RAL colour: 7035 - Light grey
System height: 2200mm
Technical data: Product type: 1-leaf revolving door Application: Universal... mehr

Technical data:

Product type: 1-leaf revolving door
Application: Universal (opening direction optional: DIN left / DIN right)
Scope of delivery: 2 x door posts, door crossbeam, door wings, mounting accessories incl. accessory set for grid mounting
Mounting height: 2253 mm
Door leaf height: 2008 mm
Axial dimension: 1008 mm
Clearance width: 860 mm
Door panel: Grid element with laterally welded profile frame QR40
Door panel: Grid mesh width 19 x 190 mm, spot-welded
Lockdown: Outside knob with reach-through protection, inside aluminium latch, not lockable when closed, with pre-locking function to prevent automatic closing when staying in the maintenance area. Opening from inside without key (escape release)
Ground clearance: 174 mm
Door post dimensions: 60 x 40 x 2 x 2200 mm
Footplate dimensions: 140 x 140 x 8 mm, 30 mm height adjustable, electrogalvanized with a blue passivation according to DIN EN ISO 19598
Weight: 52 Kg
Material type: Steel
Surface finish: high quality powder-coated
RAL colour: RAL 7035 light grey
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE
Certifications: Yes
CAD data: Yes
