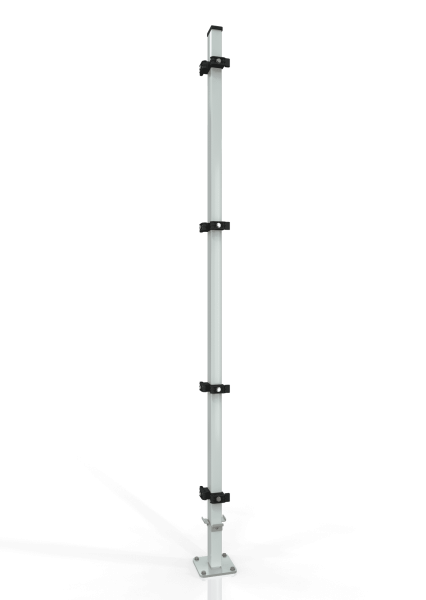

Universal corner post for machine guarding ECONFENCE® BASIC LINE 2000mm RAL-7035

€103.00 *
Quantity Unit price
To 9
€103.00 * ( €122.57 VAT included )
From 10
€99.00 * ( €117.81 VAT included )

Prices plus VAT (free shipping)

Stock items. Ready for dispatch in 48 hours

  • BEPLR2000-2-7035
Range of application: The safety guard system for machine guarding  ECONFENCE® BASIC... more
Universal corner post for machine guarding ECONFENCE® BASIC LINE 2000mm RAL-7035

Range of application:

The safety guard system for machine guarding ECONFENCE® BASIC LINE has been designed as an economical and functional separation between man and hazardous area. With a tested impact energy of 950 joules, it is not only stable, but also cost-effective to purchase. The appealing powder coating brings the corporate design of your company into the production if desired. The frameless element design used in all our product lines guarantees maximum flexibility. Subsequent adjustments, grid cuts and notches are done in no time at all.

Intended use:

The safety guard system for machine guarding ECONFENCE® BASIC LINE is intended for use as a separating distance protection device to protect people from reaching danger points on machines and systems.

Guaranteed safety ex works / product and user benefits:

  • Guaranteed high load capacity - tested impact energy 950 joules (verified by pendulum impact test in accordance with DIN EN ISO 14120)
  • DGUV TEST - Type tested - Conform MRL 2006/42/EG
  • Element cuts on site possible due to frameless grid construction
  • Simple and fast mounting of the protective device
  • Delivery with EC declaration of conformity and CE marking ex works
Product type: Posts
System height: 2000mm
Surface refinement: Powder coating
Type of material: Steel
RAL colour: 7035 - Light grey
Technical data: Product type: Protective fence - corner... mehr

Technical data:

Product type: Protective fence - corner posts
Application: Outside corner (Universal - left / right)
Scope of delivery: including 2 x mounting set for grid mounting
System height: 2000 mm
Profile dimensions: 60 x 40 x 2 x 2000 mm
Footplate: 140 x 140 x 8 mm, galvanized, 30mm height adjustable, electrogalvanized with blue passivation according to DIN EN ISO 19598
Weight: 8 Kg
Material type: Steel
Surface finish: high quality powder-coated
RAL colour 7035 Light grey
Manufacturer: TIEMANN Schutz-Systeme GmbH
Product brand: ECONFENCE®
Product line: BASIC LINE
Certifications: Yes
CAD data: Yes
